合宙ESP32C3硬件配置信息串口打印输出

🌴ESP32C3硬件简介

📝ESP32-C3 搭载 RISC-V 32 位单核处理器，时钟频率高达 160 MHz。具有 22 个可编程 GPIO 管脚、内置 400 KB SRAM,集成 2.4 GHz Wi-Fi 和支持长距离的 Bluetooth 5 (LE),支持蓝牙 Mesh (Bluetooth Mesh) 协议和乐鑫 Wi-Fi Mesh.

🔖ESP32C3资料文档
https://www.espressif.com.cn/sites/default/files/documentation/esp32-c3_datasheet_cn.pdf

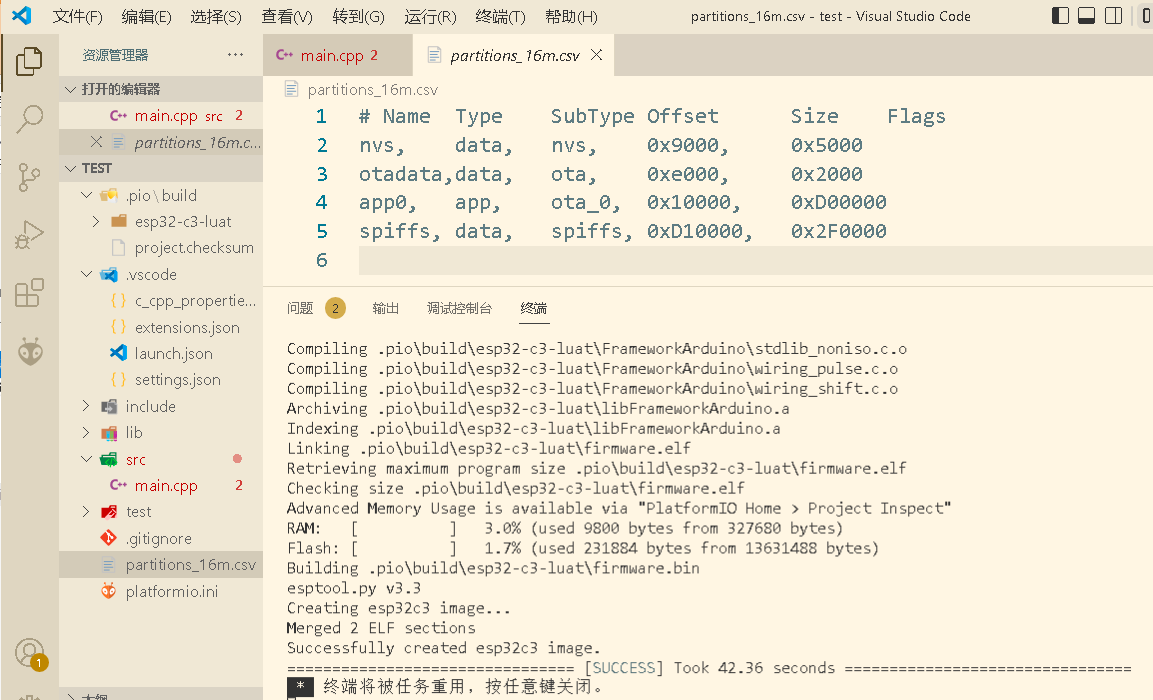

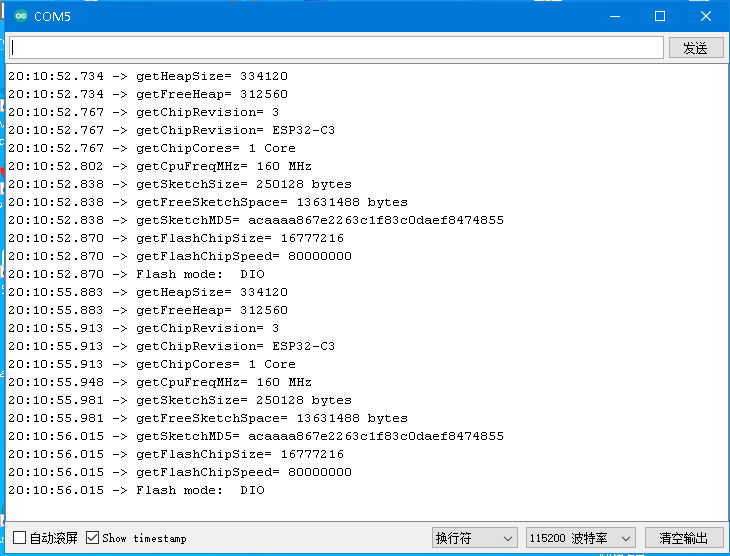

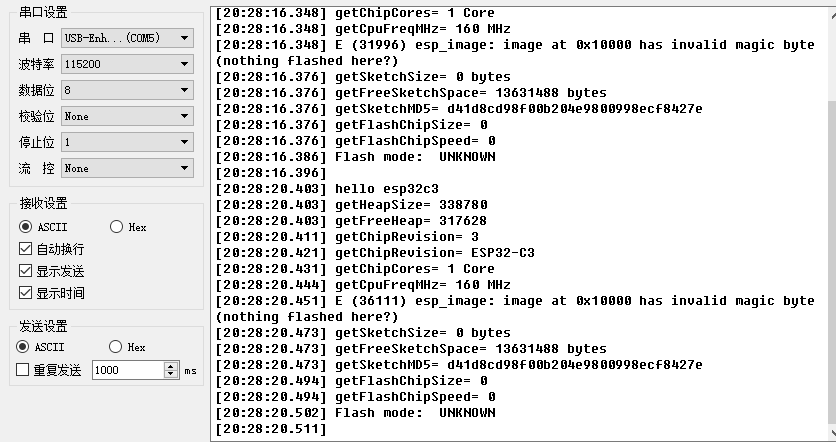

✨经检测，通过Arduino IDE编译上传的代码可以打印外置spi flash 容量，而通过VSCode PIO编译上传的代码就查询不到有关flash容量的信息。

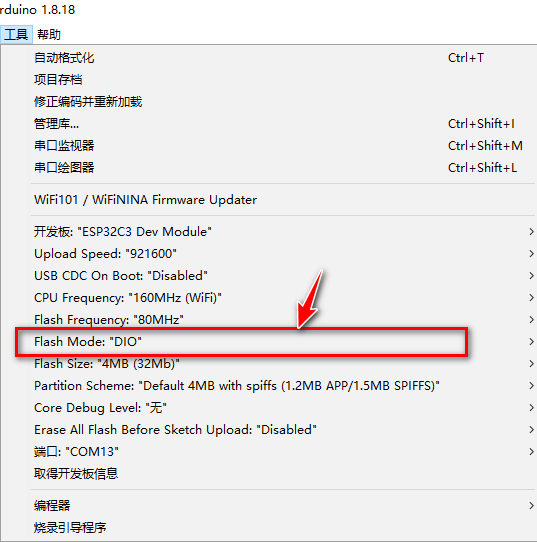

📢另外需要注意的地方：通过Arduino平台编译上传代码时，flash Mode一定要选择DIO模式，否则会无限重启。

⛳示例程序

/*BlinkThis example code is in the public domain.https://www.arduino.cc/en/Tutorial/BuiltInExamples/Blink
*/void setup() {Serial.begin(115200);// initialize digital pin LED_BUILTIN as an output.pinMode(12, OUTPUT);pinMode(13, OUTPUT);
}// the loop function runs over and over again forever
void loop() {digitalWrite(12, HIGH);   // turn the LED on (HIGH is the voltage level)digitalWrite(13, LOW);   // turn the LED on (HIGH is the voltage level)delay(1000); // wait for a seconddigitalWrite(12, LOW);    // turn the LED off by making the voltage LOWdigitalWrite(13, HIGH);delay(1000);  Serial.printf("getHeapSize= %d \n",ESP.getHeapSize());
delay(10);
Serial.printf("getFreeHeap= %d \n",ESP.getFreeHeap());delay(10);Serial.printf("getChipRevision= %d \n",ESP.getChipRevision()); // 3delay(10);Serial.printf("getChipRevision= %s \n",ESP.getChipModel()); //ESP32-C3delay(10);Serial.printf("getChipCores= %d Core\n",ESP.getChipCores()); // 1delay(10);Serial.printf("getCpuFreqMHz= %d MHz\n",ESP.getCpuFreqMHz()); //160
delay(10);
// Serial.printf("getSdkVersion= %s \n",ESP.getSdkVersion());
// Serial.printf("getFlashChipSize= %d \n",ESP.getFlashChipSize());
//  Serial.printf("getFlashChipSpeed= %d \n",ESP.getFlashChipSpeed());

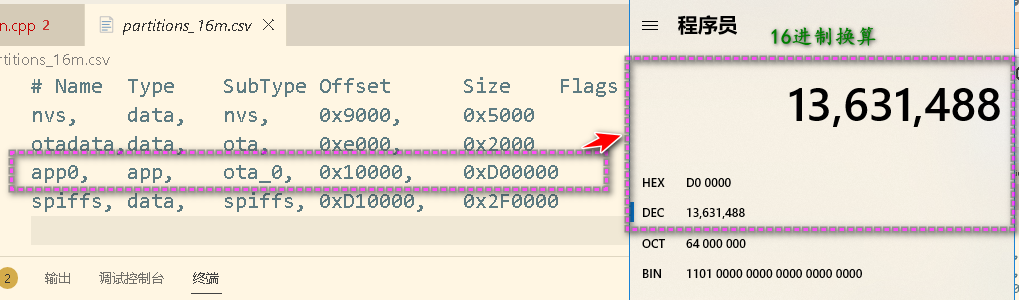

Serial.printf("getSketchSize= %d bytes\n",ESP.getSketchSize()); //250128delay(10);Serial.printf("getFreeSketchSpace= %d bytes\n",ESP.getFreeSketchSpace()); //13631488 bytesdelay(10);Serial.printf("getSketchMD5= %s \n",ESP.getSketchMD5().c_str());//acaaaa867e2263c1f83c0daef8474855delay(10);uint32_t flash_Size = ESP.getFlashChipSize(); Serial.printf("getFlashChipSize= %d \n",flash_Size); //16777216
delay(10);Serial.printf("getFlashChipSpeed= %d \n",ESP.getFlashChipSpeed()); //80000000delay(10);FlashMode_t flash_Mode = ESP.getFlashChipMode();Serial.printf("Flash mode:  %s\n", (flash_Mode == FM_QIO ? "QIO" : flash_Mode == FM_QOUT ? "QOUT" : flash_Mode == FM_DIO ? "DIO" : flash_Mode == FM_DOUT ? "DOUT" : "UNKNOWN"));delay(1000);}
